Product Description

Specifications
Channel: Dual
Output : Maximum 130 mA (peak value) across 500 Ohm load
Pulse Width: From 50μS to 400μS adjustable
Pulse rate: From 1Hz to 150Hz Adjustable
Waveform: Symmetrical Bi-phasic rectangular, Asymmetrical Bi-phasic rectangular, Monophasic rectangular and Alternated Bi-phasic rectangular
Ramp Time: 0-5 seconds, in steps of 1 second
On Time: 1-60 seconds, in steps of 1 second
Off Time: 1-60 seconds, in steps of 1 second

12 PRESET TENS programs + 8 MANUAL TENS Modes

The PRESET program apply a sequence of 3 sub-programs Ⓐ Ⓑ Ⓒ, optimized to treat the specific pain situation. The characters Ⓐ, Ⓑ or Ⓒ will flash, showing the phase in use or will be ON to show the completed phase.

12 Preset Modes:
P0 - NECK pain
P1 – TORTICOLLIS
P2 – LOW BACK pain
P3 – SCIATICA
P4 – EPICONDYLITIS
P5 – WRIST PAIN
P6 – POST-SURGERY knee pain
P7 – ANKLE sprain
P8 – KNEE pain (gonalgia)
P9 – HIP pain (coxalgia)
P10 – MENSTRUAL pain
P11 – NEURALGIA

11 PRESET EMS programs + 4 MANUAL EMS Modes

P20 - Triceps;
P21 - Latissimus dorsi;
P22 - Spinalis;
P23 - Gluteus;
P24 - Hamstrings;
P25 - Calves
P26 - Breast;
P27 - Abdomen;
P28 - Abdomen + Waist;
P29 - Thighs

Lock Button
Flip cover protects any buttons from being accidentally pushed, plus “LOCK” button locks program settings even if the battery is removed!

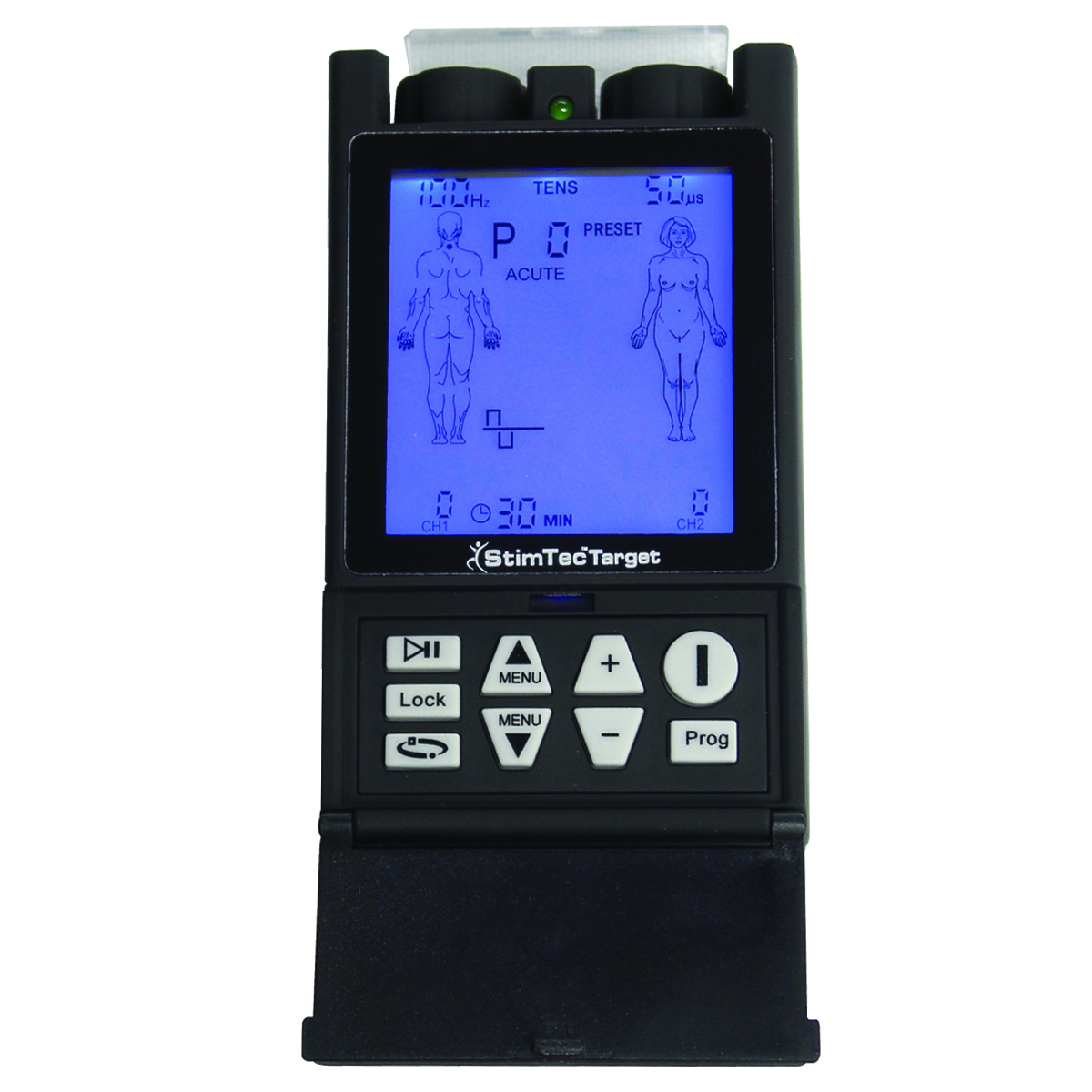

Large LCD Screen
Large, lighted display makes settings easy to read

Target Treatments
Toggle to the body part, set acute or chronic and the “Target Treatments” are preset for you.

Electrode Placement Guide
User friendly instruction guide shows exactly where electrodes should be placed for each part of the body.
